pcbModule Class Reference

Load and save a module, and store all the related data. More...

#include <pcbModule.h>

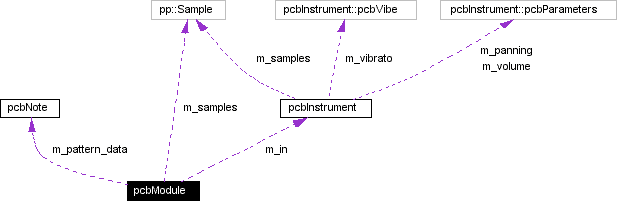

Collaboration diagram for pcbModule:

[legend]List of all members.

Public Types
typedef unsigned char	BPM
typedef unsigned char	SPEED
typedef unsigned char	GLOBAL_VOLUME
Public Methods
	pcbModule ()
	pcbModule (const char* filename)
virtual	~pcbModule ()
	pcbModule (const pcbModule& mod)
const pcbModule&	operator= (const pcbModule& mod)
	Assignment operator.
bool	Load (const char* filename)
bool	Save (const char* filenmame)
bool	UsesInstruments () const
virtual bool	Release ()
	release the data from the module -- the instruments, the samples, the patterns.
unsigned char	GetOrder (int x) const
unsigned char	GetRows (int x) const
unsigned char	GetPan (int x) const
int	GetLength () const
unsigned char	GetPatterns () const
unsigned char	GetChannels () const
unsigned char	GetInstruments () const
unsigned char	GetSamples () const
unsigned char	GetSpeed () const
unsigned char	GetBpm () const
unsigned char	GetVolume () const
const char*	GetError () const
const char*	GetName () const
const char*	GetMessage () const
const char*	GetFilename () const
bool	IsStereo () const
int	GetRestart () const
unsigned char	GetPeriodShift () const
signed long	GetMinPeriod () const
signed long	GetMaxPeriod () const
period_t	GetPeriodType () const
bool	IsLinear () const
bool	SetBPM (BPM bpm)
bool	SetSpeed (SPEED speed)
bool	SetGlobalVolume (GLOBAL_VOLUME volume)
bool	SetName (const char* name)
	Delete the old name. More...
bool	SetFileName (const char* filename)
	Delete the old name. More...
bool	SetDefaultPan (unsigned char channel, int pan)
bool	SetSamples (unsigned char samples)
bool	SetInstruments (unsigned char instruments)
bool	SetInstrument (unsigned char id, pcbInstrument* in)
bool	SetSample (unsigned char id, pp::Sample* sample)
bool	SetRestart (int restart)
bool	SetSongLength (int length)
bool	SetOrder (unsigned char order, unsigned char pattern)
bool	SetOrderLength (unsigned char length)
bool	SetPeriodType (period_t type)
bool	SetPeriodLimits (signed long least, signed long most)
bool	SetPeriodShift (unsigned char shift)
bool	SetChannels (unsigned char channels)
	There are a lot of things that need to happen when we change the number of channels in a module. More...
bool	AddChannel ()
bool	InsertChannel (unsigned char channel)
bool	RemoveChannel (unsigned char channel)
bool	RemoveChannel ()
bool	SetPatterns (unsigned char patterns)
	This will need to modify m_pattern_data, m_rows, and m_patterns.
bool	AddPattern ()
bool	InsertPattern (unsigned char pattern)
bool	RemovePattern (unsigned char pattern)
bool	RemovePattern ()
bool	SetPatternRows (unsigned char pattern, int rows)
long	NoteToPeriod (int NoteNum, pp::Sample::finetune_t finetune=0, pp::Sample::relative_note_t relative_note=0) const
	Convert the given note to an amiga period. Make sure NoteNum is the real note number. The notes in the pattern data are stored as 1 + the real note number. Empty notes are stored as 0. xm.txt states this formula for amiga frequency table: Period=(PeriodTab[(Note%12)*8+FineTune/16]*(1-Frac(FineTune/16)) + PeriodTab[(Note%12)*8 + FineTune/16]*(Frac(FineTune/16))) *16/2^(Note DIV 12); (The period is interpolated for finer finetune values) Frequency = 8363*1712/Period; It gives this for the linear frequency table Period = 10*12*16*4 - Note*16*4 - FineTune/2; Frequency = 8363*2^((6*12*16*4 - Period) / (12*16*4)); .
pp::Sample*	GetSample (int id) const
pcbInstrument*	GetInstrument (unsigned id) const
void	LinkInstrumentToSamples (unsigned id)
Public Attributes
pcbNote***	m_pattern_data
Static Public Methods
unsigned short	FinetuneToC2SPD (unsigned char finetune)
unsigned char	PeriodToNote (unsigned short period)
long	NoteToXmAmiga (int NoteNum, pp::Sample::finetune_t finetune=0, pp::Sample::relative_note_t relative_note=0)
	xm.txt states this formula: Period=(PeriodTab[(Note%12)*8+FineTune/16]*(1-Frac(FineTune/16)) + PeriodTab[(Note%12)*8 + FineTune/16]*(Frac(FineTune/16))) *16/2^(Note DIV 12); (The period is interpolated for finer finetune values) Frequency = 8363*1712/Period; .
Protected Attributes
pp::Sample**	m_samples
pcbInstrument**	m_in

---

Detailed Description

Load and save a module, and store all the related data.

---

Member Function Documentation

bool pcbModule::SetChannels ( unsigned char channels )

There are a lot of things that need to happen when we change the number of channels in a module. Set the value of m_channels. We need to change the size of m_default_pan. We need to change all the patterns so that they have the correct number of channels and rows.

bool pcbModule::SetFileName ( const char * filename )

Delete the old name. Allocate memory for the new name and copy the given name to that memory

bool pcbModule::SetName ( const char * name )

Delete the old name. Allocate memory for the new name and copy the given name to that memory

---

The documentation for this class was generated from the following files:

• /home/pcburns/c/penguinsound/src/player/include/pcbModule.h
• /home/pcburns/c/penguinsound/src/player/src/pcbModule.cpp

---
