#include <pcbChannel.h>

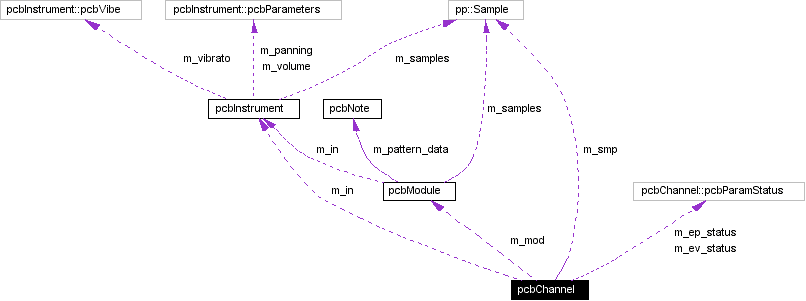

Collaboration diagram for pcbChannel:
Public Methods | |||
| pcbChannel (pp::Audio& audio) | |||
| need an audio to allocate the channel. | |||
| ~pcbChannel () | |||
| pcbChannel& | operator= (const pcbChannel& channel) | ||
| void | Reset (bool fPosition = true) | ||
| This is used when a new sample is set or a new note is started. | |||
| void | VolumeUp (int x) | ||
| Increases the volume by x. The maximum volume is 128. | |||
| void | VolumeDown (int y) | ||
| Decreases the volume by y. The minimum volume is 0. | |||
| void | SetVolume (const pcbNote& n) | ||
Set the volume of the channel. If not for the callback this could be moved into the channel class. As well as set a volume between 0 and 40 it processes the volume effects. VC_PORT_TONE is broken due to reliance on NoteToPeriod and PeriodShift
| |||
| void | DoVolumeSlide () | ||
| Process the volume slide effect, taking the parameters from memory. | |||
| void | DoPortamento () | ||
| Process the portamento effect, taking the parameters from memory. Add or subtract speed to frequency until note is reached. Check for glissando ? | |||
| void | DoVibrato (unsigned char vib_type = 0) | ||
| Process the vibrato effect, taking the parameters from memory. vib_type = 0 for normal vibrato, or FINE_VIBRATO for you guessed it. | |||
| void | DoInstrumentVibrato () | ||
| I'm not really sure how instrument vibrato actually works. xm.txt is not terribly informative about it, in fact it doesn't say anything about it. Maybe it doesn't exist? If anyone knows about it mail me. I think it uses fine vibrato. | |||
| void | DoTremolo (int max_volume) | ||
| Tremolo is a modulation in the volume. | |||
| void | DoTremor () | ||
| Volume is set to zero after y ticks. | |||
| unsigned char | ProcessEnvelope (pcbInstrument::pcbParameters* p, pcbParamStatus* t) | ||
| This can be used for both panning envelopes and volume envelopes. It takes an envelope represented by p, and the status of envelope (ie the current position etc.) updates the position and returns the current y value. | |||
| void | ResetEnvelope (pcbParamStatus* t) | ||
| void | SetEnvelopePosition (int position) | ||
| This sets the current point of the envelopes the one with the x component closest to "position". | |||
| void | Update () | ||
| void | UpdateSample () | ||
| void | UpdateVolume () | ||
Update the audio systems volume for this channel. Calculate mix volume for this channel. FT2 uses this formula: FinalVol = (FadeOutVol / 65536) * (EnvelopeVol / 64) * (GlobalVol / 64) * (Vol / 64) * Scale; | |||
| void | UpdatePeriod () | ||
Update the period for the channel. From xm.txt: Linear frequence table: ----------------------- Period = 10*12*16*4 - Note*16*4 - FineTune/2; Frequency = 8363*2^((6*12*16*4 - Period) / (12*16*4)); Amiga frequence table: ---------------------- Period = (PeriodTab[(Note MOD 12)*8 + FineTune/16]*(1-Frac(FineTune/16)) + PeriodTab[(Note MOD 12)*8 + FineTune/16]*(Frac(FineTune/16))) *16/2^(Note DIV 12); (The period is interpolated for finer finetune values) Frequency = 8363*1712/Period; | |||
| void | UpdatePosition () | ||
| void | UpdatePanning () | ||
| void | SetNote (int note) | ||
| void | SetPeriod (int period) | ||
| void | SetPosition (long int position) | ||
| void | SetVolume (int volume) | ||
| void | SetPanning (int panning) | ||
| bool | VolumeEnvelopeEnabled () | ||
| bool | PanningEnvelopeEnabled () | ||
| void | DoVolumeEnvelope () | ||
| void | DoPanningEnvelope () | ||
| void | SetToTremorVolume () | ||
| void | SetPortamentoSpeed (int speed) | ||
| void | SetPortamentoPeriod (int period) | ||
| void | PortUp (int least) | ||
| void | PortDown (int most) | ||
| void | FinePortUp (int up, int least) | ||
| void | FinePortDown (int down, int most) | ||
| void | SetTremor (int tremor) | ||
| void | SetGlobalVolumeSlide (int slide) | ||
| void | DoRetrigVolumeSlide (int rx) | ||
| void | ResetVolume () | ||
| void | ResetPanning () | ||
| pp::Sample::relative_note_t | GetRelativeNote (int NoteNum) const | ||
| pp::Sample::finetune_t | GetFineTune (int NoteNum) const | ||
| pp::Sample* | GetSample (int NoteNum) const | ||
| pp::Sample* | GetCurrentSample () const | ||
| pcbInstrument* | GetInstrument () const | ||
| void | Start () | ||
| void | Stop () | ||
| bool | operator< (const pcbChannel& channel) const | ||
| bool | operator== (const pcbChannel& channel) const | ||
| void | SetInstrumentMode (bool mode) | ||
| void | SetInstrument (const pcbNote& n, const pcbModule& module) | ||
| bool | IsInstrument () const | ||
| signed char | GetVolume () const | ||
| void | SetSampleNumber (int number) | ||
| void | SetSampleNumber (const pcbNote& n) | ||
| int | GetSampleNumber () const | ||
| bool | HasSample () const | ||
| bool | HasInstrument () const | ||
| void | SetKeyOff () | ||
| void | SetKeyOn () | ||
| void | SetFadeout (unsigned long fadeout) | ||
| unsigned char | GetTremorVolume () const | ||
| unsigned char | GetFineVolumeSlide () const | ||
| int | GetID () const | ||
| bool | InstrumentPanning () const | ||
| void | SetPeriodType (period_t type) | ||
| pcbChannel () | |||
| void | SetModule (pcbModule* mod) | ||
| unsigned char | GetOffset () const | ||
| void | SetOffset (unsigned char offset) | ||
| void | ResetVibrato () | ||
| void | SetVibratoWaveform (unsigned char wave) | ||
| unsigned char | GetVibratoWaveform () const | ||
| void | SetVibratoPosition (signed char pos) | ||
| void | SetVibratoSpeed (unsigned char speed) | ||
| void | SetVibratoDepth (unsigned char depth) | ||
| void | SetTremoloWaveform (unsigned char wave) | ||
| unsigned char | GetTremoloWaveform () const | ||
| void | SetTremoloPosition (signed char pos) | ||
| void | SetTremoloSpeed (unsigned char speed) | ||
| void | SetTremoloDepth (unsigned char depth) | ||
| void | SetVolumeSlide (unsigned char slide) | ||
| void | SetFineVolumeSlide (unsigned char slide) | ||
| void | SetGlissando (unsigned char glissando) | ||
| void | SetLoopStart (signed char start) | ||
| signed char | GetLoopStart () const | ||
| void | SetLoopCount (signed char count) | ||
| signed char | GetLoopCount () const | ||
| void | DecrementLoopCount () | ||
| void | SetRetrigger (unsigned char retrig) | ||
| unsigned char | GetRetrigger () const | ||
| unsigned char | GetNote () const | ||
| signed long | GetPeriod () const | ||
| bool | PortamentoComplete () const | ||
| unsigned char | GetGlobalVolumeSlide () const | ||
This can't be a ppsChannel since we need to get that from the driver so we'll just give it a ppsChannel.
